TLV272DMR2G - onsemi

Description: Wide Bandwidth: 3 MHz; Wide Power Supply Range: 2.7 to 36V; Low Supply Current: 416 µA; Rail to Rail Output

Download TLV272DMR2G Model

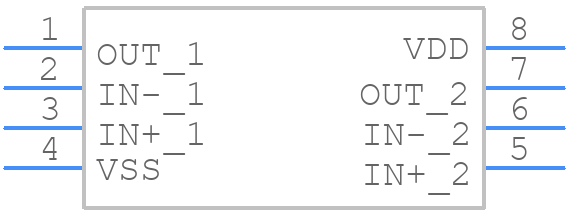

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV272DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE K
click to zoom
3D Models
TLV272DMR2G - onsemi  - 3D model - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE K
click to zoom

TLV272DMR2G Details

  • Manufacturer Part Number:

    TLV272DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro8

  • Manufacturer Package Code:

    846A-02

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-04-28

  • Manufacturer:

    onsemi

  • YTEOL:

    5.82

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    102 dB

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Input Offset Current-Max (IIO):

    0.000075 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    2.7 V/us

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    63095.73445

  • Wideband:

    NO

  • Width:

    3 mm

TLV272DMR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLV272DMR2G is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum equivalent series resistance (ESR) of 1.3 ohms.
  • The TLV272DMR2G can provide a maximum output current of 150mA.
  • The TLV272DMR2G has a built-in thermal shutdown feature that turns off the output when the junction temperature exceeds 150°C. To handle this, ensure proper heat sinking and avoid operating the device in high-temperature environments.
  • The enable pin (EN) is used to turn the output on or off. When EN is high, the output is enabled, and when EN is low, the output is disabled.
