TLV274DR2G - onsemi

Description: Rail to Rail Output; Wide Bandwidth: 3 MHz; Low Supply Current: 416 µA; Wide Power Supply Range: 2.7 to 36V

Download TLV274DR2G Model

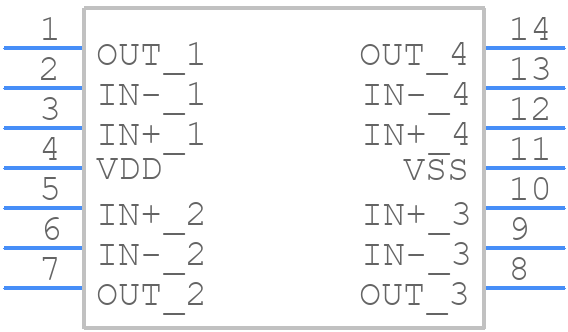

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV274DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
TLV274DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

TLV274DR2G Details

  • Manufacturer Part Number:

    TLV274DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Manufacturer Package Code:

    751A-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-04-28

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.75 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    102 dB

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Input Offset Current-Max (IIO):

    0.000075 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    2.7 V/us

  • Supply Current-Max:

    2.8 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    63095.73445

  • Wideband:

    NO

  • Width:

    3.9 mm

TLV274DR2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TLV274DR2G is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
  • Yes, the TLV274DR2G is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the maximum junction temperature (TJ) should not exceed 150°C.
  • To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in the feedback loop or using a resistor in series with the feedback capacitor. Additionally, the datasheet provides guidance on compensation networks for specific applications.
  • To minimize noise and ensure optimal performance, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths. The datasheet provides additional guidance on layout and routing considerations.
  • While the TLV274DR2G is an op-amp, it can be used as a comparator in certain applications. However, it's essential to ensure that the input common-mode voltage is within the specified range, and the output stage is properly biased to prevent latch-up.
