The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the digital interface signals (e.g., I2C, SPI, etc.). This ensures that the analog and digital sections of the device are properly initialized.
The TLV320AIC1107PWR is a highly configurable device. To configure it for a specific audio application, refer to the device's programming guide and use the provided software development kit (SDK) to generate the necessary register settings. You can also consult the device's datasheet and application notes for guidance on configuring the device for specific use cases.
The maximum input signal level that the TLV320AIC1107PWR can handle depends on the specific configuration and the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) being used. In general, the device can handle input signal levels up to 2.5 Vrms for the ADC and up to 1.5 Vrms for the DAC. However, it's recommended to consult the device's datasheet and application notes for specific guidance on input signal levels.
To optimize the TLV320AIC1107PWR for low power consumption, use the device's power-down modes, adjust the clock frequency, and optimize the digital interface configuration. Additionally, consider using the device's built-in power-saving features, such as the automatic power-down mode, and optimize the system's power management strategy to minimize power consumption.
The recommended layout and routing for the TLV320AIC1107PWR involves separating the analog and digital sections of the device, using a solid ground plane, and minimizing noise coupling between the analog and digital signals. Consult the device's datasheet and application notes for specific guidance on layout and routing, and consider using a 4-layer or 6-layer PCB to minimize noise and ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV320AIC1107PWR Overview

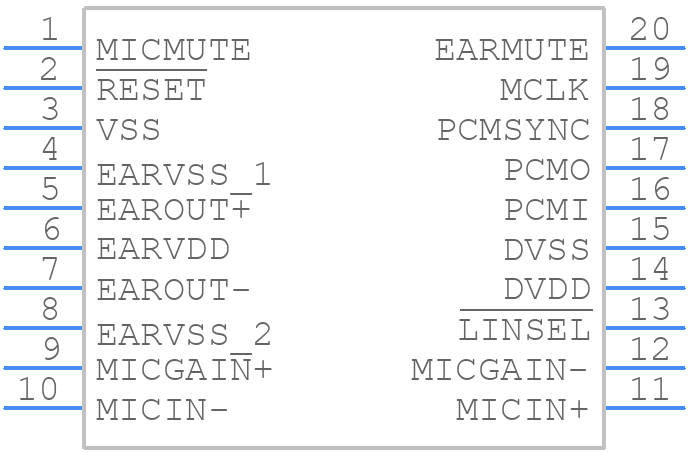

Use the download button to access the TLV320AIC1107PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32,
or try a keyword search, such as Codecs
