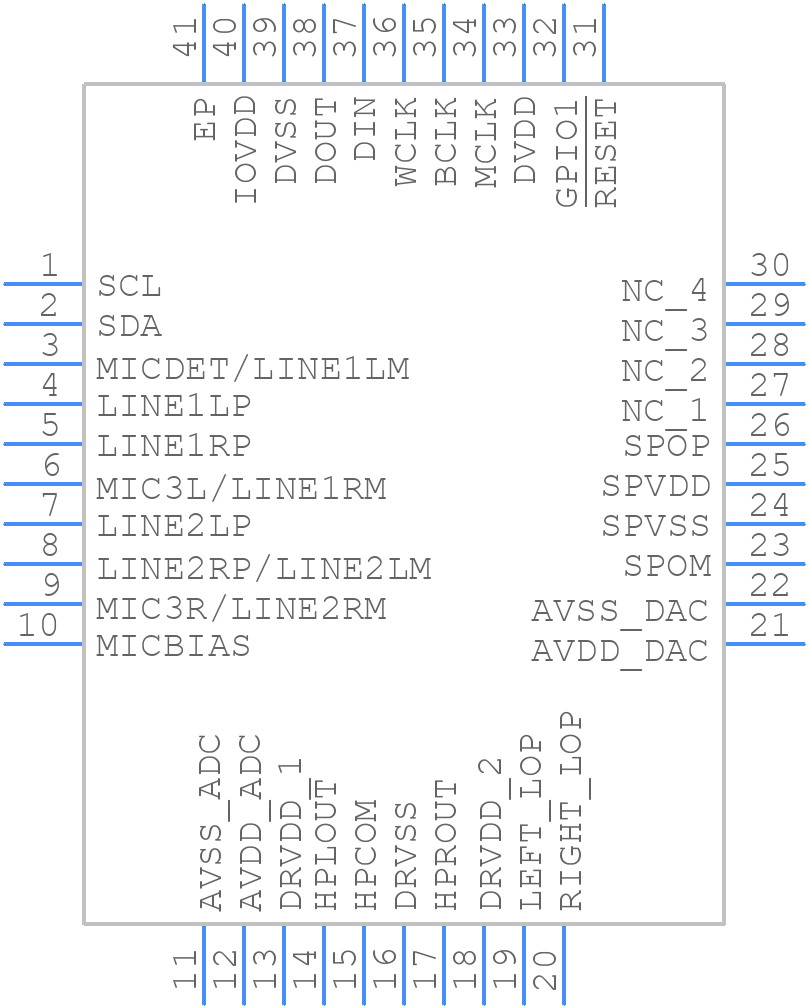

TLV320AIC3007IRSBR - Texas Instruments

TLV320AIC3007IRSBR Details

• Manufacturer Part Number:

  TLV320AIC3007IRSBR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  40

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Filter:

  YES

• Input Code:

  TWOS COMPLEMENT

• Input Type:

  SINGLE-ENDED/DIFF

• JESD-30 Code:

  S-PQCC-N40

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  2

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  VOLTAGE

• Output Code:

  TWOS COMPLEMENT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Telecom IC Type:

  ADPCM CODEC

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
