TLV320AIC31IRHBRG4 - Texas Instruments

Description: Interface - CODECs Lo-Pwr Ster Codec for Port Aud/Teleph

Download TLV320AIC31IRHBRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

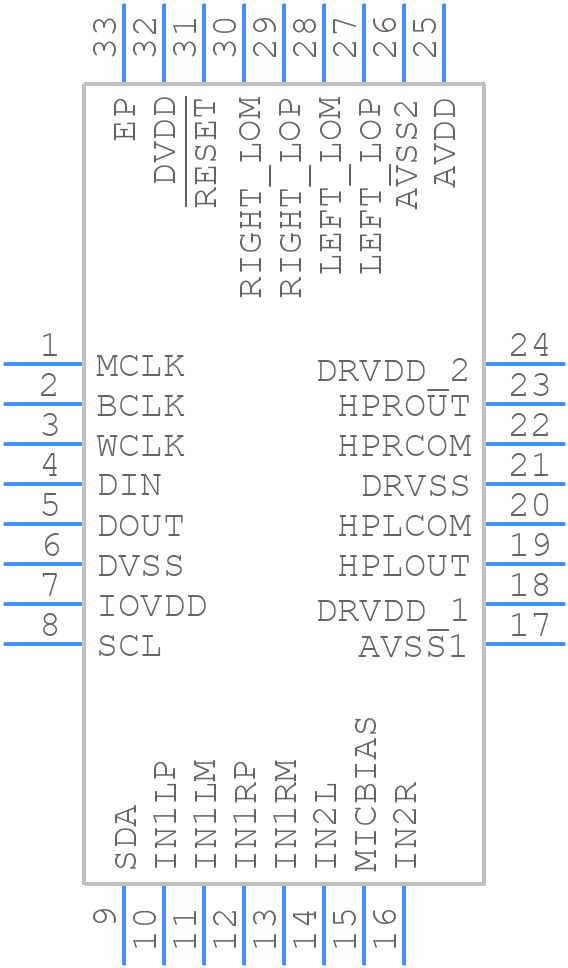

TLV320AIC31IRHBRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC31IRHBRG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
TLV320AIC31IRHBRG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

TLV320AIC31IRHBRG4 Details

  • Manufacturer Part Number:

    TLV320AIC31IRHBRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-32

  • Pin Count:

    32

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Filter:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PROGRAMMABLE CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC31IRHBRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC31IRHBRG4 for stereo audio, set the STEREO bit in the Audio Interface Format Register (AIFR) to 1. This enables stereo mode and allows the device to process two channels of audio data.
  • The TLV320AIC31IRHBRG4 supports clock frequencies up to 50 MHz. However, the recommended clock frequency is 12.288 MHz or 24.576 MHz for optimal performance.
  • To reduce power consumption, use the Power Management Register (PMR) to disable unused blocks and interfaces. Additionally, use the Dynamic Voltage Scaling (DVS) feature to adjust the voltage supply to the device based on the system's power requirements.
  • The recommended layout and routing for the TLV320AIC31IRHBRG4 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, use a decoupling capacitor between VDD and GND to reduce noise and ensure stable operation.
