TLV320AIC3206IRSBT - Texas Instruments

Description: Very-Low-Power Stereo Codec With DirectPath™ HP Amplifier

Download TLV320AIC3206IRSBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

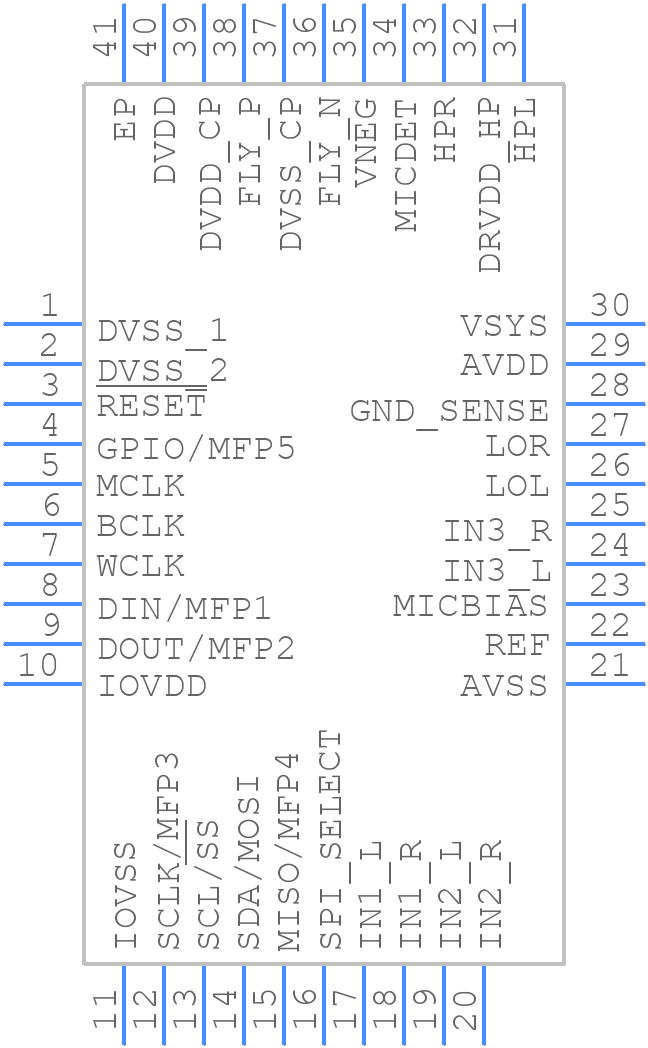

TLV320AIC3206IRSBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC3206IRSBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040B
click to zoom
3D Models
TLV320AIC3206IRSBT - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040B
click to zoom

TLV320AIC3206IRSBT Details

  • Manufacturer Part Number:

    TLV320AIC3206IRSBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Filter:

    YES

  • Input Type:

    SINGLE-ENDED/DIFF

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC3206IRSBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly.
  • The TLV320AIC3206 can be configured for master or slave mode by setting the M/S bit in the Control Register (address 0x00). A value of 0 sets the device to slave mode, while a value of 1 sets it to master mode.
  • The TLV320AIC3206 supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • The TLV320AIC3206 has a built-in microphone bias voltage generator that can be enabled by setting the MIC_BIAS_EN bit in the Control Register (address 0x00). The bias voltage can be set to 1.25V, 2.5V, or 3.3V using the MIC_BIAS_SEL bits in the Control Register.
  • The NOISE_GATE_EN bit enables or disables the noise gate function, which is used to reduce noise and hiss in the audio signal. When enabled, the noise gate function dynamically adjusts the gain of the audio signal to reduce noise and hiss.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC3206IRSBT Overview

Use the download button to access the TLV320AIC3206IRSBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Codecs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
