TLV320AIC3254IRHBT - Texas Instruments

Description: TLV320AIC3254IRHBT, Audio Codec Stereo-channel 32bit- 192ksps Serial-I2C, Serial-I2S, Serial-SPI 32-Pin QFN

Download TLV320AIC3254IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

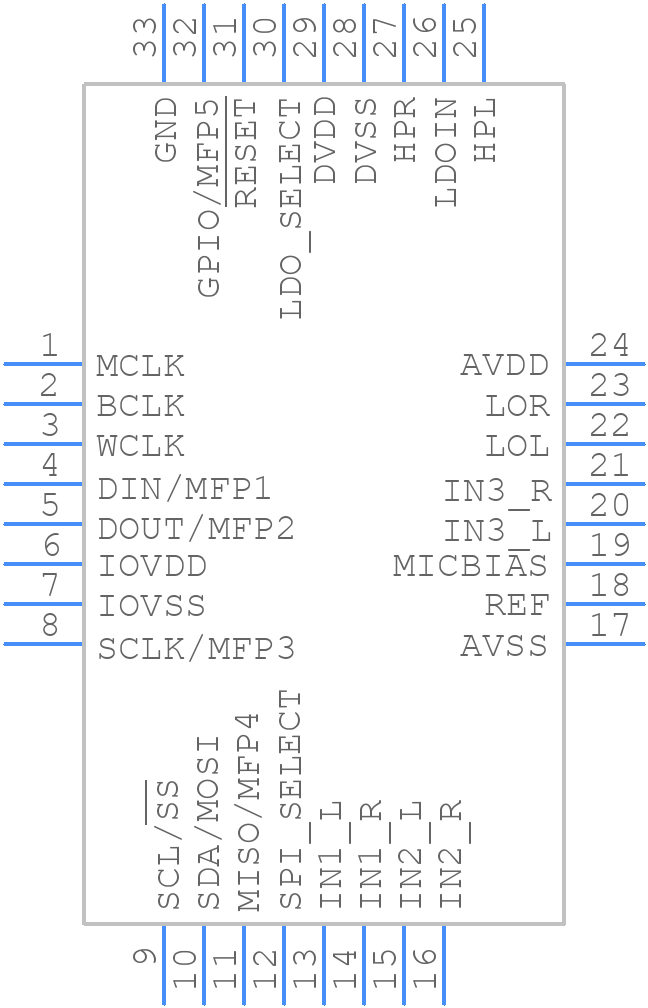

TLV320AIC3254IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC3254IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TLV320AIC3254IRHBT-1
click to zoom
3D Models
TLV320AIC3254IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - TLV320AIC3254IRHBT-1
click to zoom

TLV320AIC3254IRHBT Details

  • Manufacturer Part Number:

    TLV320AIC3254IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input-Max:

    2.5 V

  • Filter:

    YES

  • Input Type:

    SINGLE-ENDED/DIFF

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC3254IRHBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • The TLV320AIC3254 has a variety of configuration options, including clocking modes, audio interface formats, and analog-to-digital converter (ADC) and digital-to-analog converter (DAC) settings. Refer to the datasheet and application notes for specific configuration guidelines.
  • The TLV320AIC3254 supports clock frequencies up to 50 MHz, but the maximum frequency depends on the specific application and clocking mode used.
  • To optimize the TLV320AIC3254 for low power consumption, use the power-down modes, adjust the clock frequency, and optimize the analog and digital supply voltages. Additionally, consider using the device's built-in power-saving features, such as the automatic power-down mode.
  • The TLV320AIC3254IRHBT is a variant of the TLV320AIC3254 with a different package type (VQFN) and a slightly different pinout. The 'IRHBT' suffix indicates a specific package and temperature range (-40°C to 85°C).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC3254IRHBT Overview

Use the download button to access the TLV320AIC3254IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Codecs
