TLV320DAC23IPW - Texas Instruments

Description: Low-Power Stereo DAC with HP Amplifier

Download TLV320DAC23IPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

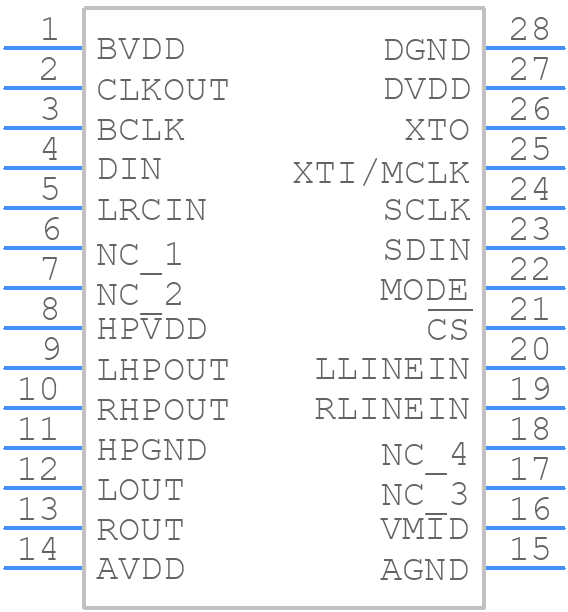

Symbol
TLV320DAC23IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320DAC23IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
TLV320DAC23IPW - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

TLV320DAC23IPW Details

  • Manufacturer Part Number:

    TLV320DAC23IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV320DAC23IPW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures proper device operation and prevents damage.
  • To optimize performance, use a low-noise power supply, decouple the power pins with capacitors, and use a high-quality clock source. Additionally, ensure that the analog and digital grounds are separated and connected at a single point to minimize noise coupling.
  • The TLV320DAC23IPW can support clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • The TLV320DAC23IPW can be configured for differential or single-ended output by setting the appropriate bits in the device's control register. Refer to the datasheet for specific register settings and configuration details.
  • To minimize noise and EMI, use a multi-layer PCB with separate analog and digital ground planes. Route the analog signals away from the digital signals, and use shielding or guard rings to isolate sensitive nodes. Additionally, use short, direct traces for the clock and data signals.
