TLV320DAC23PWR - Texas Instruments

Description: Audio D/A Converter ICs Low-Power Portable Aud Converter

Download TLV320DAC23PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

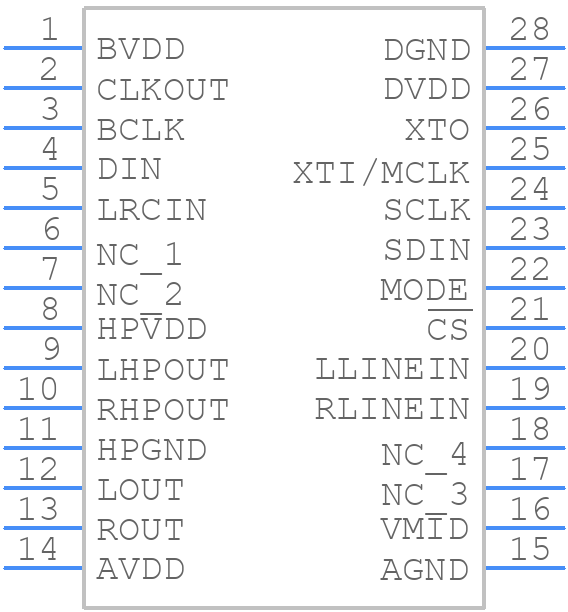

Symbol
TLV320DAC23PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320DAC23PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
TLV320DAC23PWR - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

TLV320DAC23PWR Details

  • Manufacturer Part Number:

    TLV320DAC23PWR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV320DAC23PWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures that the internal voltage regulators are properly biased before the digital circuitry is powered up.
  • To optimize performance, use a low-noise power supply, decouple the power pins with high-quality capacitors, and use a low-impedance output load. Additionally, ensure that the analog and digital grounds are separated and connected at a single point to minimize noise coupling.
  • The maximum output current of the TLV320DAC23PWR is 20 mA per channel. Exceeding this current limit can cause the device to overheat and potentially fail.
  • To configure the TLV320DAC23PWR for differential output operation, connect the OUT+ pin to the positive output of the load, and the OUT- pin to the negative output of the load. Ensure that the load impedance is balanced and that the common-mode voltage is within the specified range.
  • The recommended clock frequency range for the TLV320DAC23PWR is 2.4 kHz to 50 kHz. Operating the device outside of this range may result in reduced performance or instability.
