TLV320DAC3202CYZJR - Texas Instruments

Description: DAC 2-CH Delta-Sigma 24-bit

Download TLV320DAC3202CYZJR Model

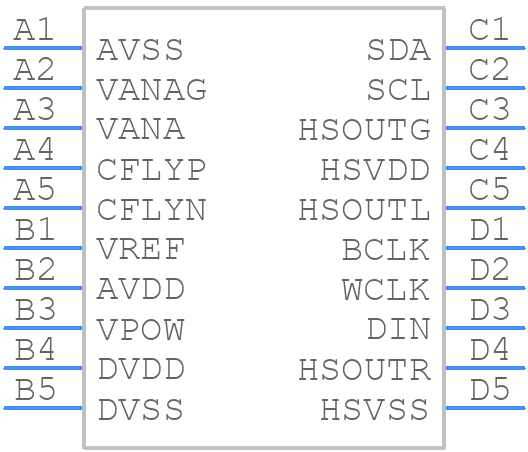

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV320DAC3202CYZJR - Texas Instruments PCB footprint - BGA - BGA - TXB0108ZXYR
click to zoom
3D Models
TLV320DAC3202CYZJR - Texas Instruments  - 3D model - BGA - TXB0108ZXYR
click to zoom

TLV320DAC3202CYZJR Details

  • Manufacturer Part Number:

    TLV320DAC3202CYZJR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

TLV320DAC3202CYZJR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supplies (VDDIO and VDDA). This ensures that the internal voltage regulators are powered up correctly.
  • The TLV320DAC3202 can be configured for master or slave mode by setting the appropriate values on the SYNC, BCK, and WS pins. In master mode, the device generates the clock signals, while in slave mode, it receives clock signals from an external source.
  • The maximum output current of the TLV320DAC3202 is 20mA per channel. This should be taken into account when designing the output stage and selecting the output resistors.
  • To optimize the performance of the TLV320DAC3202, it is recommended to use a high-quality clock source, ensure proper power supply decoupling, and optimize the output stage design. Additionally, the device's internal voltage regulators can be bypassed with external capacitors to further improve performance.
  • The TLV320DAC3202 is compatible with 1.8V, 2.5V, and 3.3V logic levels. However, it is not compatible with 5V logic levels, and level translation may be required if the device is to be interfaced with 5V logic.
