TLV320DAC3203IRGET - Texas Instruments

Description: TLV320DAC3203IRGET, Audio Codec PCM 2-channel 32bit- 48ksps Serial-I2C, Serial-SPI 24-Pin VQFN

Download TLV320DAC3203IRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

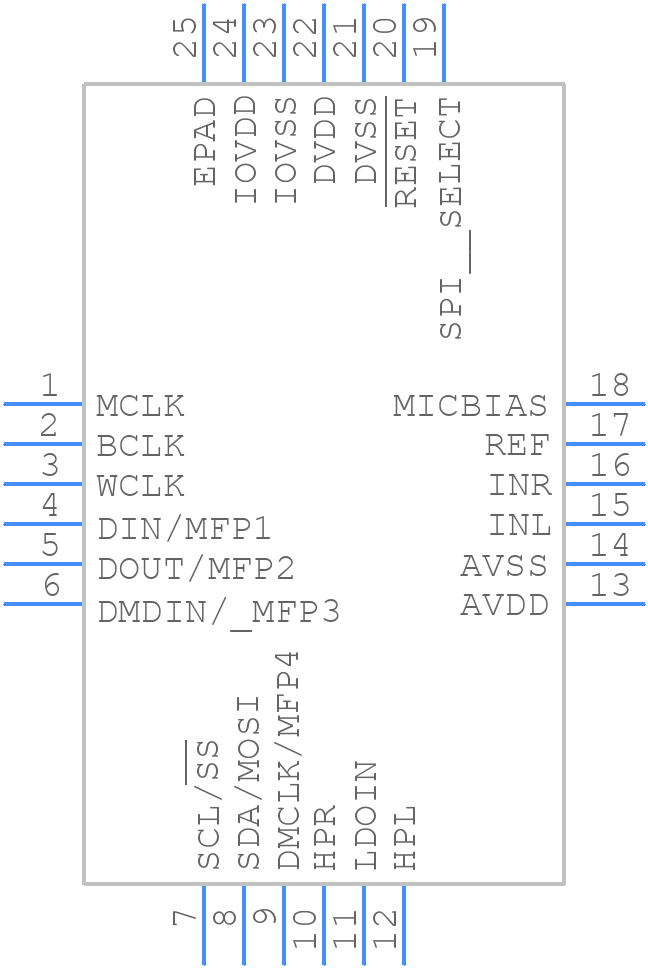

Symbol
TLV320DAC3203IRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320DAC3203IRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H_1
click to zoom
3D Models
TLV320DAC3203IRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H_1
click to zoom

TLV320DAC3203IRGET Details

  • Manufacturer Part Number:

    TLV320DAC3203IRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    92 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Noise Figure-Nom:

    94 dB

  • Number of Bands:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.047 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TLV320DAC3203IRGET Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
  • The TLV320DAC3203 can be configured for master or slave mode by setting the appropriate bits in the Control Register (CR) and the Interface Control Register (ICR). Consult the datasheet for specific bit settings.
  • The TLV320DAC3203 supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • To optimize the TLV320DAC3203 for low power consumption, use the Power Management Register (PMR) to control the power modes of the device. Additionally, consider using the device's built-in power-saving features, such as the Auto-Power-Down mode.
  • The recommended layout and routing for the TLV320DAC3203 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Consult the datasheet and application notes for more detailed guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320DAC3203IRGET Overview

Use the download button to access the TLV320DAC3203IRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
