TLV320DAC3203IYZKT - Texas Instruments

Description: Ultra Low Power Stereo Audio Codec With Integrated Headphone Amplifiers

Download TLV320DAC3203IYZKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

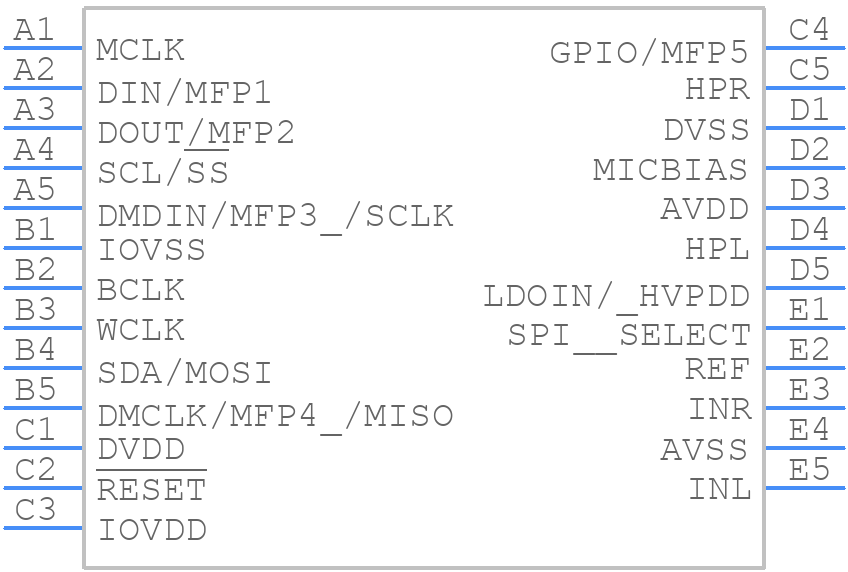

Symbol
TLV320DAC3203IYZKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320DAC3203IYZKT - Texas Instruments PCB footprint - BGA - BGA - YZK (S-XBGA-N25)
click to zoom
3D Models
TLV320DAC3203IYZKT - Texas Instruments - 3D model - BGA - YZK (S-XBGA-N25)
click to zoom

TLV320DAC3203IYZKT Details

  • Manufacturer Part Number:

    TLV320DAC3203IYZKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    92 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    S-XBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.64 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    94 dB

  • Number of Bands:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.047 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.64 mm

TLV320DAC3203IYZKT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supplies (VDDIO and VDDA). This ensures that the internal voltage regulators are powered up correctly.
  • The TLV320DAC3203 can be configured for master or slave mode by setting the appropriate bits in the Control Register (CR). In master mode, the device generates its own clock, while in slave mode, it uses an external clock. Consult the datasheet for specific bit settings.
  • The maximum output current of the TLV320DAC3203 is 20mA per channel. This should be taken into account when designing the output stage and selecting the output resistors.
  • To optimize the performance of the TLV320DAC3203, ensure that the device is operated within the recommended operating conditions, use a low-noise power supply, and follow proper PCB layout and grounding techniques. Additionally, use the internal digital filter and adjust the output stage to minimize noise and distortion.
  • Yes, the TLV320DAC3203 can be used with separate analog and digital power supplies. This can help to reduce noise and improve overall performance. However, ensure that the power supplies are properly decoupled and follow the recommended power-up sequence.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320DAC3203IYZKT Overview

Use the download button to access the TLV320DAC3203IYZKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Audio Control ICs
