TLV3492AIDCNR - Texas Instruments

Description: Dual Nanopower Push-Pull Output Comparator

Download TLV3492AIDCNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

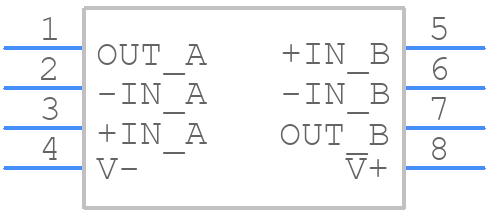

TLV3492AIDCNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV3492AIDCNR - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom
3D Models
TLV3492AIDCNR - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom

TLV3492AIDCNR Details

  • Manufacturer Part Number:

    TLV3492AIDCNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.00001 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    12000 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.0024 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TLV3492AIDCNR Frequently Asked Questions (FAQs)

  • It is recommended to place the TLV3492AIDCNR close to the analog signal source, use a ground plane, and keep the input traces short and shielded to minimize noise. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
  • The TLV3492AIDCNR is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the device when designing the system.
  • The recommended input impedance for the TLV3492AIDCNR is 1 kΩ to 10 kΩ. This ensures that the input signal is properly terminated and that the device can accurately amplify the signal.
  • To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure that the device is properly grounded and that the PCB layout is designed to minimize radiation.
  • It is recommended to use a 10 μF to 100 μF decoupling capacitor between the power supply pins (VCC and GND) to filter out high-frequency noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV3492AIDCNR Overview

Use the download button to access the TLV3492AIDCNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV34, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
