TLV3502AIDCNRG4 - Texas Instruments

Description: Analog Comparators 4.5ns Rail-to-Rail Comparator

Download TLV3502AIDCNRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

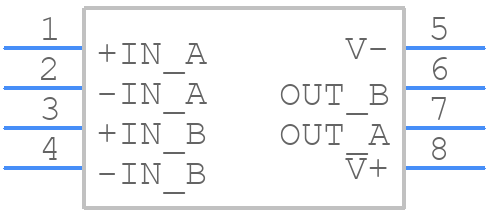

TLV3502AIDCNRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV3502AIDCNRG4 - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN
click to zoom
3D Models
TLV3502AIDCNRG4 - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN
click to zoom

TLV3502AIDCNRG4 Details

  • Manufacturer Part Number:

    TLV3502AIDCNRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Pin Count:

    8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.00001 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7.5 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

TLV3502AIDCNRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with short traces and minimal vias to minimize noise and parasitic inductance. Place the device close to the power supply and use a solid ground plane to reduce noise coupling. Refer to the application note SLVAE03 for more details.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and place them close to the device. Also, ensure that the input and output capacitors are properly decoupled from each other and from the power supply. Additionally, avoid using capacitors with high equivalent series resistance (ESR) and ensure that the output capacitor has a low impedance at high frequencies.
  • The TLV3502AIDCNRG4 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The TLV3502AIDCNRG4 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability. Refer to the datasheet for more information on thermal derating.
  • Start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Verify that the capacitors are properly connected and meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Texas Instruments support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV3502AIDCNRG4 Overview

Use the download button to access the TLV3502AIDCNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV35, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
