The TLV3701IDR is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure proper operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. Additionally, it's recommended to use a solid ground plane and to decouple the power supply with a 0.1uF capacitor.
The output capacitor selection depends on the desired output voltage ripple, output current, and stability. TI recommends using a low-ESR capacitor with a value between 1uF to 10uF. A higher capacitance value can reduce the output voltage ripple but may affect the stability of the device. It's recommended to use a capacitor with a voltage rating of at least 2x the output voltage.
The TLV3701IDR has an absolute maximum input voltage rating of 6V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure proper operation and to prevent damage to the device.
The TLV3701IDR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and to ensure proper thermal management to prevent overheating.
To troubleshoot issues with the TLV3701IDR, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the layout follows good practices. Check for signs of overheating, such as excessive temperature or reduced output current. Use an oscilloscope to check for noise or oscillations on the output. If the issue persists, consult the datasheet and application notes or contact TI support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV3701IDR Overview

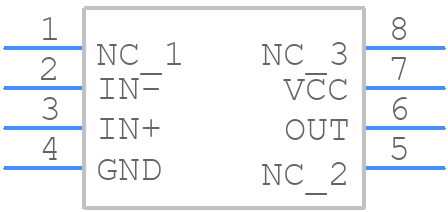

Use the download button to access the TLV3701IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV37,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
