The TLV3701IP is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure proper operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. A solid ground plane and a decoupling capacitor (e.g., 0.1 μF) between VCC and GND are also recommended.
The output capacitor value depends on the desired output voltage ripple, output current, and stability. A general rule of thumb is to use a capacitor with a value between 1 μF and 10 μF, with a voltage rating of at least 2x the output voltage. For example, for a 3.3 V output, use a 6.3 V or higher rated capacitor. TI also provides a capacitor selection guide in the datasheet.
The TLV3701IP has an absolute maximum input voltage rating of 6.5 V. However, the recommended operating input voltage range is 2.7 V to 5.5 V. Exceeding the absolute maximum rating can damage the device.
The TLV3701IP is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. TI recommends derating the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet for more information on thermal derating.
To ensure stability, follow the layout and placement guidelines, use a suitable output capacitor, and avoid long traces and vias under the device. Additionally, make sure the input voltage is within the recommended range, and the output current is within the specified limits. If oscillations occur, try adding a small ceramic capacitor (e.g., 10 nF) between the output and GND.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV3701IP Overview

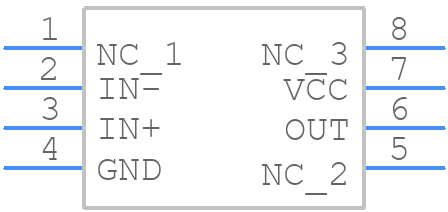

Use the download button to access the TLV3701IP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV37,
or try a keyword search, such as Comparators
