TLV4112IDGN - Texas Instruments

Description: High-Output-Drive Operational Amplifier

Download TLV4112IDGN Model

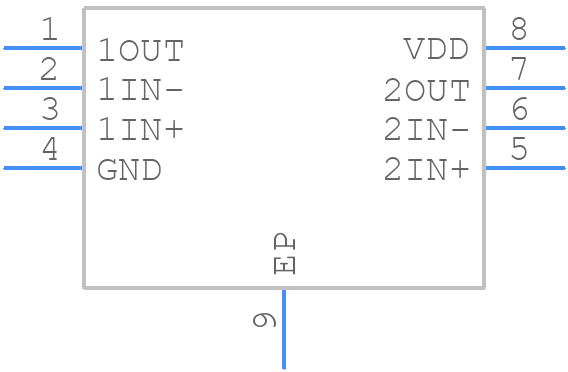

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV4112IDGN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
TLV4112IDGN - Texas Instruments  - 3D model - Small Outline Packages - DGN0008D
click to zoom

TLV4112IDGN Details

  • Manufacturer Part Number:

    TLV4112IDGN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0005 µA

  • Bias Current-Max (IIB) @25C:

    0.000025 µA

  • Common-mode Reject Ratio-Min:

    68 dB

  • Common-mode Reject Ratio-Nom:

    68 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.000025 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Slew Rate-Min:

    0.55 V/us

  • Slew Rate-Nom:

    1.57 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2700

  • Voltage Gain-Min:

    7943

  • Wideband:

    NO

  • Width:

    3 mm

TLV4112IDGN Frequently Asked Questions (FAQs)

  • It is recommended to place the TLV4112IDGN close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
  • To ensure stability, it is recommended to use a compensation capacitor (Cc) between the output and the inverting input, and to choose a value that is within the recommended range specified in the datasheet. Additionally, the device should be operated within the recommended operating conditions and the input and output capacitors should be selected carefully to avoid oscillation.
  • The maximum power dissipation of the TLV4112IDGN is dependent on the package type and the ambient temperature. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The maximum power dissipation should not exceed the recommended value specified in the datasheet.
  • The TLV4112IDGN is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's power dissipation and operating conditions according to the datasheet specifications to ensure reliable operation in high-temperature environments.
  • To protect the TLV4112IDGN from overvoltage and overcurrent conditions, it is recommended to use voltage and current limiting circuits, such as voltage regulators and current limiters, to prevent damage to the device. Additionally, the device should be operated within the recommended operating conditions and the input and output capacitors should be selected carefully to avoid overvoltage and overcurrent conditions.
