TLV4113IDGQR - Texas Instruments

Description: Dual, High Output Drive Operational Amplifier with Shutdown

Download TLV4113IDGQR Model

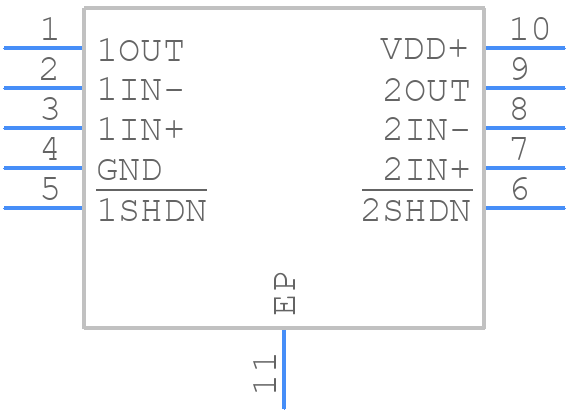

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV4113IDGQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010D
click to zoom
3D Models
TLV4113IDGQR - Texas Instruments  - 3D model - Small Outline Packages - DGQ0010D
click to zoom

TLV4113IDGQR Details

  • Manufacturer Part Number:

    TLV4113IDGQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0005 µA

  • Bias Current-Max (IIB) @25C:

    0.000025 µA

  • Common-mode Reject Ratio-Min:

    68 dB

  • Common-mode Reject Ratio-Nom:

    68 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.000025 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.55 V/us

  • Slew Rate-Nom:

    1.57 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2700

  • Voltage Gain-Min:

    7943

  • Wideband:

    NO

  • Width:

    3 mm

TLV4113IDGQR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLV4113IDGQR involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and crosstalk.
  • To ensure stability, make sure to follow the recommended capacitor values and placement in the datasheet. Additionally, use a low-ESR capacitor for the output capacitor (Cout) and ensure the device is properly decoupled from the power supply. Also, avoid using long traces and minimize the distance between the device and the output capacitor.
  • The TLV4113IDGQR can handle input voltages up to 36V, but it's recommended to operate within the specified input voltage range of 2.7V to 36V for optimal performance and to prevent damage to the device.
  • The TLV4113IDGQR is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as the temperature increases to prevent overheating and ensure reliable operation.
  • The output voltage of the TLV4113IDGQR can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (1.25V for the TLV4113IDGQR).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV4113IDGQR Overview

Use the download button to access the TLV4113IDGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV41, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TLV4113IDGQR

Showing 0 results

TLV4113IDGQR Alternates

Showing results

Image Part Number Model
Part Image TLV4113IDGQG4 Texas Instruments

Operational Amplifier, 2 Func, 4000uV Offset-Max, CMOS, PDSO10
