The TLV5608IDW is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital traces separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane.
The TLV5608IDW has a specific power-up sequence requirement. It is recommended to power up the device in the following order: AVDD, DVDD, and then the analog input signals. This ensures that the internal biasing and reference circuits are properly initialized.
The TLV5608IDW requires proper decoupling to ensure stable operation. It is recommended to use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the AVDD and DVDD pins.
To optimize the performance of the TLV5608IDW in noisy environments, it is recommended to use a low-pass filter on the analog input signals, use a shielded enclosure, and keep the device away from high-frequency noise sources. Additionally, using a ferrite bead or a common-mode choke on the power supply lines can help to reduce noise coupling.
The TLV5608IDW is specified to operate over a temperature range of -40°C to 125°C. However, it is recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5608IDW Overview

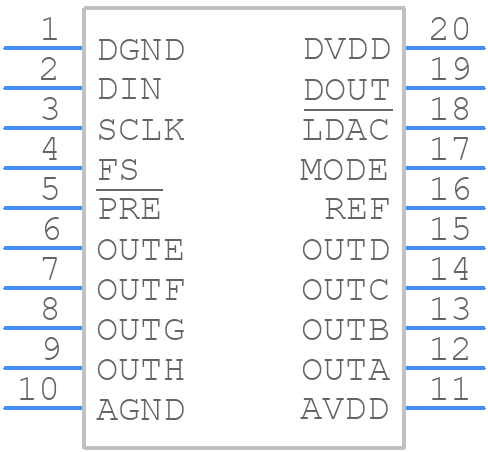

Use the download button to access the TLV5608IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
