TLV5610IPW - Texas Instruments

Description: Digital to Analog Converters - DAC 12bit 8Chl DAC

Download TLV5610IPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

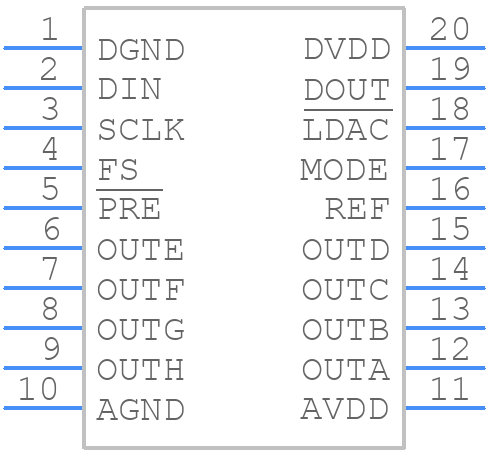

TLV5610IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5610IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
TLV5610IPW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

TLV5610IPW Details

  • Manufacturer Part Number:

    TLV5610IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.1465%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.283 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    21 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV5610IPW Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the input and output traces short and away from each other. Additionally, use a 4-layer PCB with a solid ground plane and a separate analog power plane.
  • The TLV5610IPW requires a single 5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the analog supply (VCC) before the digital supply (VDD).
  • The maximum clock frequency for the TLV5610IPW is 20 MHz. The clock signal should be a clean, low-jitter signal with a 50% duty cycle. It's recommended to use a clock signal with a rise and fall time of less than 10 ns.
  • The TLV5610IPW outputs 10-bit digital data in a serial format. The output data is in a 2's complement format, with the most significant bit (MSB) first. The output data is valid on the falling edge of the clock signal.
  • The TLV5610IPW has an internal calibration circuit that is enabled by default. No external calibration is required. However, if the internal calibration is disabled, an external calibration signal can be applied to the CAL pin.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5610IPW Overview

Use the download button to access the TLV5610IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
