Texas Instruments provides a recommended layout and routing guide in the TLV5613IDW datasheet, but it's essential to follow general high-frequency PCB design principles, such as minimizing trace lengths, avoiding vias, and using a solid ground plane.
The TLV5613IDW has a rail-to-rail output swing, but it's crucial to ensure the output voltage doesn't exceed the supply rails. Additionally, the output current capability is limited to 30mA, so it's essential to impedance match the output stage to prevent current limiting and ensure signal integrity.
A simple RC filter or a more complex active filter can be used to reduce noise and ripple. The filter design depends on the specific requirements, but a general rule of thumb is to use a filter with a cutoff frequency at least 10 times higher than the desired signal bandwidth.
The TLV5613IDW is specified to operate from -40°C to 125°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal pads or heat sinks if necessary, and avoiding hot spots on the PCB.
The TLV5613IDW requires a single supply voltage between 2.7V and 5.5V. Ensure the power supply is clean and well-regulated, and consider using a low-dropout regulator (LDO) or a switching regulator with a low noise output to minimize power supply noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5613IDW Overview

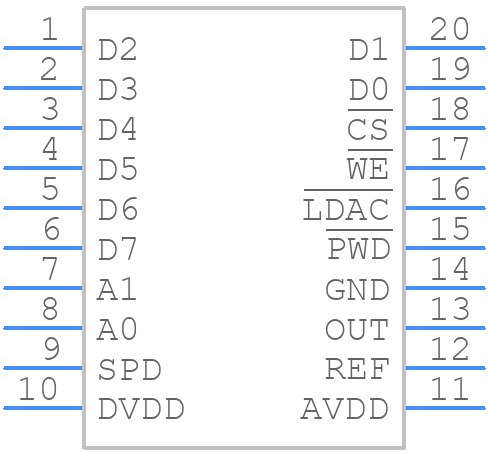

Use the download button to access the TLV5613IDW schematic symbol, PCB footprint, and 3D model.
