TLV5617AIDRG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 10-Bit 2.5 us Dual DAC

Download TLV5617AIDRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

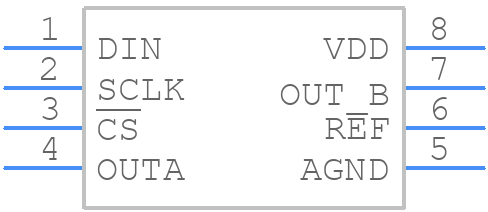

Symbol
TLV5617AIDRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5617AIDRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TLV5617AIDRG4 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

TLV5617AIDRG4 Details

  • Manufacturer Part Number:

    TLV5617AIDRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.093 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLV5617AIDRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the device placed close to the decoupling capacitors, and the analog and digital grounds separated to minimize noise coupling. A 4-layer PCB with a solid ground plane is recommended.
  • The TLV5617AIDRG4 requires a power-on reset (POR) to ensure proper initialization. A 10uF capacitor on the VCC pin and a 1kΩ resistor on the EN pin are recommended to ensure a clean power-up sequence.
  • The TLV5617AIDRG4 can operate with clock frequencies up to 50MHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for specific guidance.
  • The TLV5617AIDRG4 outputs 16-bit data in a serial format. The data should be captured on the falling edge of the clock signal, and the device requires a minimum of 10 clock cycles to output a complete conversion result.
  • The TLV5617AIDRG4 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and reading the output code, then adjusting the internal calibration registers to achieve the desired accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5617AIDRG4 Overview

Use the download button to access the TLV5617AIDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters
