The recommended layout and routing for the TLV5628CDWR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 0.1uF decoupling capacitor between VCC and GND, and to place the capacitor close to the device.
To ensure the TLV5628CDWR is properly powered, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the power supply can provide enough current to support the device's operating current, which is typically around 10mA.
The TLV5628CDWR can handle clock frequencies up to 20MHz. However, it's recommended to use a clock frequency of 10MHz or less to ensure reliable operation and to minimize the effects of jitter and noise.
The TLV5628CDWR can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The device's SCLK, SDI, and SDO pins should be connected to the microcontroller's corresponding pins, and the microcontroller should be configured to communicate with the TLV5628CDWR using the desired protocol.
The TLV5628CDWR's internal voltage reference has an accuracy of ±1.5% over the entire operating temperature range of -40°C to 125°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5628CDWR Overview

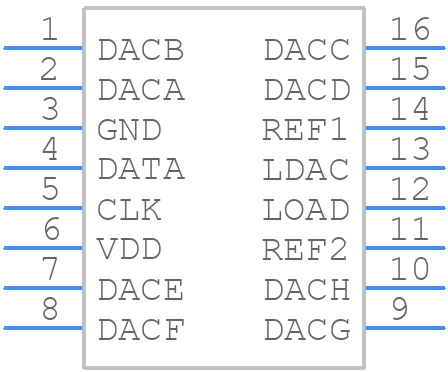

Use the download button to access the TLV5628CDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
