Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device to filter out noise.
The POR and BOR features of the TLV5628CN are designed to ensure that the device powers up in a known state. To handle these features, the engineer should ensure that the power supply is stable and within the recommended operating range, and that the device is not powered up or down too quickly. Additionally, the engineer should consider adding external circuitry to detect and respond to POR and BOR events.
The maximum clock frequency for the TLV5628CN is 20 MHz. Using a higher clock frequency can result in increased power consumption, reduced accuracy, and potential errors. The engineer should ensure that the clock frequency is within the recommended range and that the device is properly configured to handle the chosen clock frequency.
The TLV5628CN has an internal calibration circuit that can be used to trim the device's offset and gain errors. The engineer should follow the recommended calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the calibration registers to achieve the desired accuracy.
The TLV5628CN is sensitive to temperature changes, which can affect its accuracy and performance. The engineer should ensure that the device is operated within the recommended temperature range (-40°C to 85°C), and that proper thermal management is implemented to prevent overheating. This may include using heat sinks, thermal vias, and other thermal management techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5628CN Overview

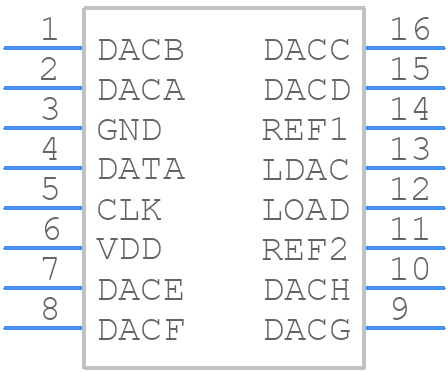

Use the download button to access the TLV5628CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
