Texas Instruments recommends a star-ground connection for the analog and digital grounds, and to keep the analog and digital signal traces separate to minimize noise coupling. Additionally, it's recommended to use a solid ground plane and to avoid routing digital signals under the device.
The internal reference voltage of the TLV5629IDWR is 2.5V, but it can be overridden by an external reference voltage. When using an external reference voltage, ensure it is stable and within the recommended range (2.0V to 2.7V). Using an external reference voltage can improve accuracy and reduce noise, but it may also increase power consumption.
The maximum output current of the TLV5629IDWR is 25mA per channel. Exceeding this current limit can cause the output voltage to droop, reducing accuracy. To maintain accuracy, ensure the output current is within the recommended range and use a suitable output buffer or amplifier if necessary.
A POR circuit can be implemented using a voltage supervisor IC or a simple RC circuit. The POR circuit ensures the TLV5629IDWR is properly reset during power-up, which helps prevent incorrect output voltages and ensures reliable operation. This is especially important in applications where the power supply voltage may be unstable or noisy during startup.
The thermal impedance of the TLV5629IDWR is 34.4°C/W. This means that for every watt of power dissipated, the device temperature will increase by 34.4°C. To ensure reliable operation, it's essential to keep the device temperature within the recommended range (-40°C to 125°C) by providing adequate heat sinking and airflow.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5629IDWR Overview

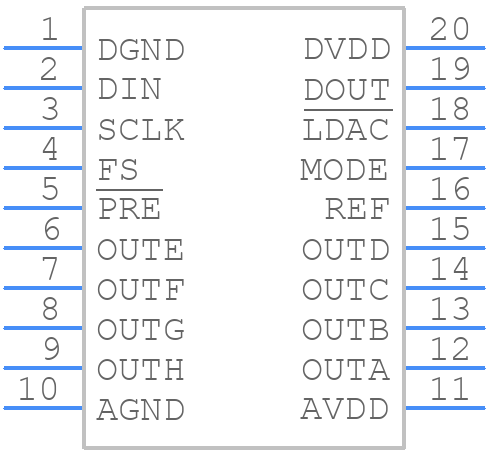

Use the download button to access the TLV5629IDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
