Texas Instruments provides a layout and routing guide in the application note SLAA382, which recommends keeping the analog and digital grounds separate, using a star-ground configuration, and minimizing trace lengths and loops to reduce noise and electromagnetic interference (EMI).
The internal reference voltage of the TLV5630IDWG4 is 2.5V, and it is recommended to use this internal reference for most applications. However, if an external reference voltage is required, it can be connected to the REF pin, but it must be within the specified range of 2.4V to 2.6V, and the internal reference must be disabled by connecting the REFIN pin to GND.
The maximum clock frequency for the TLV5630IDWG4 is 20 MHz, and it determines the conversion rate of the ADC. A higher clock frequency results in a faster conversion rate, but it also increases the power consumption and noise sensitivity of the device.
The TLV5630IDWG4 outputs data in a straight binary format, but it can be configured to output data in a twos-complement format by setting the appropriate bits in the control register. The output data format can also be modified using external logic or software processing.
The TLV5630IDWG4 has a power-on reset (POR) circuit that resets the device's internal registers and configuration to their default values when the power supply voltage rises above the POR threshold. This ensures that the device starts up in a known state and prevents any unexpected behavior during power-up.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5630IDWG4 Overview

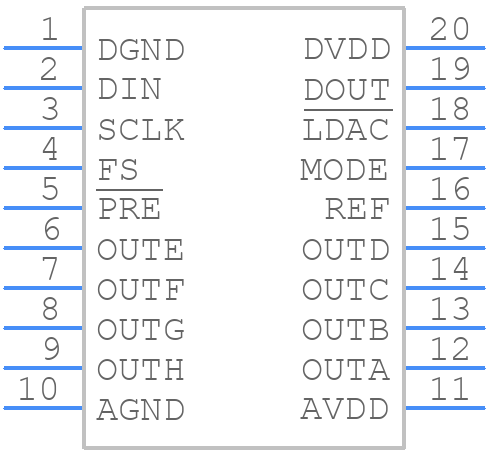

Use the download button to access the TLV5630IDWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
