Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, use short and direct traces for the analog inputs and outputs, and avoid running digital signals near the analog signals.
The TLV5633IPW has an internal 2.5V reference voltage, but it can be overridden with an external reference. When using an external reference, ensure it is stable and accurate, and that the reference input pin is properly decoupled. Using an external reference can improve accuracy and reduce noise, but it may also increase power consumption.
The TLV5633IPW can achieve a maximum sampling rate of 1 MSPS. However, the power consumption increases with the sampling rate. At 1 MSPS, the power consumption is approximately 15 mW, while at 100 kSPS, it is around 5 mW. The sampling rate should be chosen based on the specific application requirements and power constraints.
The TLV5633IPW outputs 12-bit digital data in a serial format. The output data is in a 2's complement format, with the most significant bit (MSB) first. The digital output should be connected to a microcontroller or other digital device that can handle the serial data format and perform any necessary data processing.
When using the TLV5633IPW in a multi-channel or multiplexed configuration, ensure that the analog inputs are properly multiplexed and that the conversion time is sufficient for each channel. Additionally, consider the increased power consumption and potential noise coupling between channels. Proper layout, routing, and shielding are crucial to maintain signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5633IPW Overview

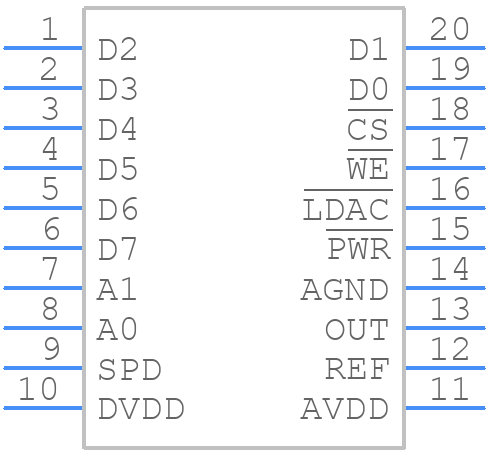

Use the download button to access the TLV5633IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
