TLV5636CDGK - Texas Instruments

Description: 12-Bit, 1 us DAC Serial Input, Pgrmable Int. Ref., Settling Time

Download TLV5636CDGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

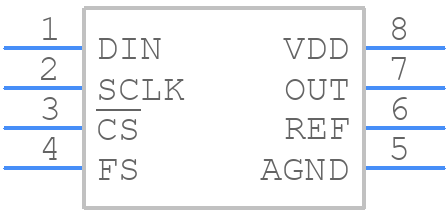

Symbol
TLV5636CDGK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5636CDGK - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TLV5636CDGK - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TLV5636CDGK Details

  • Manufacturer Part Number:

    TLV5636CDGK

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.233 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLV5636CDGK Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star-grounding layout, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from digital signals.
  • The internal 2.5V reference voltage is derived from the supply voltage, so it's recommended to use a voltage regulator or a voltage divider to generate a stable 2.5V reference voltage if the supply voltage is different from 2.5V.
  • The TLV5636CDGK can drive up to 1000pF of capacitive load, but it's recommended to keep the capacitive load below 500pF to ensure stability and optimal performance.
  • The TLV5636CDGK can be used as a voltage buffer or amplifier by connecting the output to the inverting input and using an external resistor to set the gain. However, it's recommended to use an op-amp specifically designed for buffering or amplification applications for better performance and stability.
  • The TLV5636CDGK's performance and accuracy can be affected by temperature, with the internal reference voltage and output voltage drift increasing with temperature. It's recommended to use temperature compensation or calibration techniques to minimize the effects of temperature on the device's performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5636CDGK Overview

Use the download button to access the TLV5636CDGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
