Part Image

TLV62569ADRLR - Texas Instruments

Description: 2A High Efficiency Step-down Buck Converter with forced PWM in SOT Package

Download ECAD Model

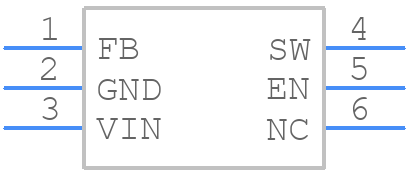

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TLV62569ADRLR - Texas Instruments PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - DRL0006A
click to zoom

3D Models

TLV62569ADRLR - Texas Instruments  - 3D model - SO Transistor Flat Lead - DRL0006A
click to zoom

TLV62569ADRLR Details

  • Manufacturer Part Number:

    TLV62569ADRLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSOF,

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-10-21

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.05

  • Samacsys Modified On:

    2020-07-29 06:26:39

  • YTEOL:

    15

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE FROM 0.6 V TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOF

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.2 mm

Sponsored

TLV62569ADRLR Overview

Use the download button to access the TLV62569ADRLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV62, or try a keyword search, such as Switching Regulator or Controllers
