A good PCB layout for the TLV627432YFPR involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The output capacitor should be chosen based on the desired output voltage ripple, output current, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. X5R or X7R ceramic capacitors are good options.
The TLV627432YFPR has an absolute maximum input voltage rating of 18V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V to ensure optimal performance and reliability.
The TLV627432YFPR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases. It's also important to ensure good thermal design and heat sinking to prevent overheating.
To troubleshoot issues with the TLV627432YFPR, start by checking the PCB layout and component placement, ensuring that the input and output capacitors are properly placed and sized. Next, verify that the input voltage and output current are within the recommended ranges. If issues persist, use an oscilloscope to check for oscillations or ringing on the output, and adjust the output capacitor or add a snubber circuit as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV627432YFPR Overview

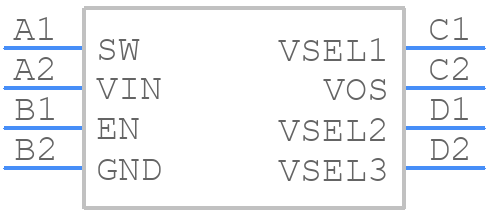

Use the download button to access the TLV627432YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
