TLV7012DSGR - Texas Instruments

Description: Analog Comparators Micropower small size comparator (dual, push-pull output) 8-WSON -40 to 125

Download TLV7012DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

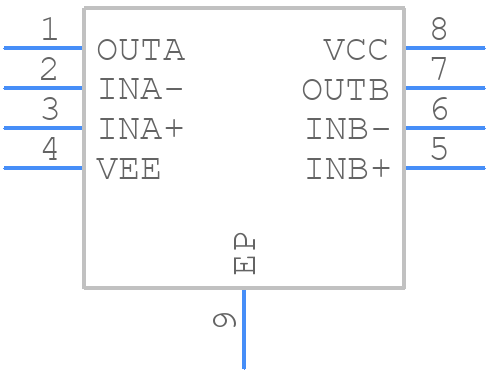

Symbol
TLV7012DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV7012DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
TLV7012DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

TLV7012DSGR Details

  • Manufacturer Part Number:

    TLV7012DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-10-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.000002 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    260 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.018 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TLV7012DSGR Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and add a 10nF to 100nF capacitor between the VOUT and GND pins. Additionally, ensure that the output capacitor is within the recommended range and the output voltage is within the specified range.
  • The TLV7012DSGR can handle a maximum input voltage of 18V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation.
  • The TLV7012DSGR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management techniques to ensure reliable operation.
  • The output voltage of the TLV7012DSGR can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected between the VOUT and GND pins. The output voltage range is 0.8V to 15V.
