TLV7022DSGR - Texas Instruments

Description: Comparator General Purpose Open-Drain, Rail-to-Rail 8-WSON (2x2)

Download TLV7022DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

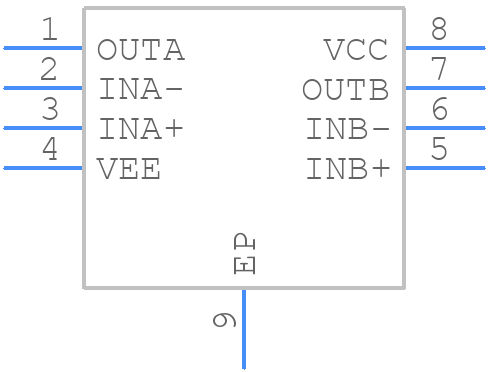

Symbol
TLV7022DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV7022DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
TLV7022DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

TLV7022DSGR Details

  • Manufacturer Part Number:

    TLV7022DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-10-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.000002 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    260 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.018 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TLV7022DSGR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TLV7022DSGR is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the device.
  • Yes, the TLV7022DSGR can be used as a voltage regulator for a microcontroller. It's a low-dropout linear regulator (LDO) that can provide a stable output voltage, making it suitable for powering microcontrollers and other digital circuits.
  • The output capacitor should be chosen based on the output voltage and the desired level of output voltage ripple. A minimum of 1uF ceramic capacitor is recommended, but a larger value may be required for higher output voltages or to reduce output voltage ripple.
  • The TLV7022DSGR is rated for a maximum output current of 250mA, making it suitable for low-to-medium current applications. For higher current applications, a different regulator or a more robust solution may be required.
  • To ensure stability, follow the recommended layout and component selection guidelines in the datasheet, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, avoid using long traces and keep the input and output capacitors close to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV7022DSGR Overview

Use the download button to access the TLV7022DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV70, or try a keyword search, such as Comparators
