A good PCB layout for the TLV75201PDSQT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
To ensure stability, make sure to follow the recommended capacitor values and PCB layout, and avoid using capacitors with high ESR (Equivalent Series Resistance). Also, ensure that the input voltage is within the recommended range and the output is properly decoupled.
The TLV75201PDSQT can handle input voltages up to 18V, but it's recommended to operate within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
The TLV75201PDSQT is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques to keep the device within its recommended operating temperature range.
To troubleshoot issues with the TLV75201PDSQT, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Also, check for any signs of overheating, and ensure that the device is properly soldered and connected to the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV75201PDSQT Overview

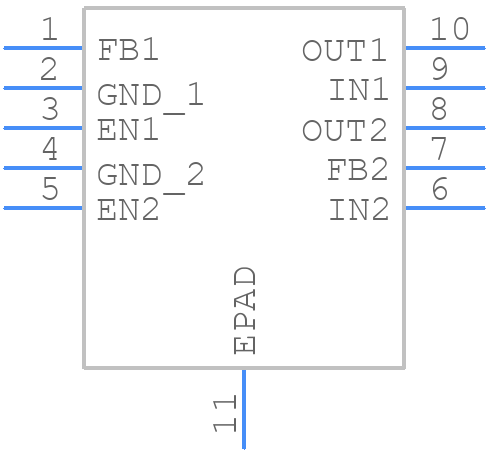

Use the download button to access the TLV75201PDSQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV75,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
