A good PCB layout for the TLV76601QWDRBRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended capacitor values and types, and keep the output capacitor ESR (Equivalent Series Resistance) low. Also, ensure the input voltage is within the recommended range, and the device is operated within the recommended temperature range.
The TLV76601QWDRBRQ1 can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
The TLV76601QWDRBRQ1 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
To troubleshoot issues with the TLV76601QWDRBRQ1, check the input voltage, output voltage, and output current. Verify that the device is operated within the recommended specifications, and check for any signs of overheating or physical damage. Use an oscilloscope to check for noise or oscillations on the output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV76601QWDRBRQ1 Overview

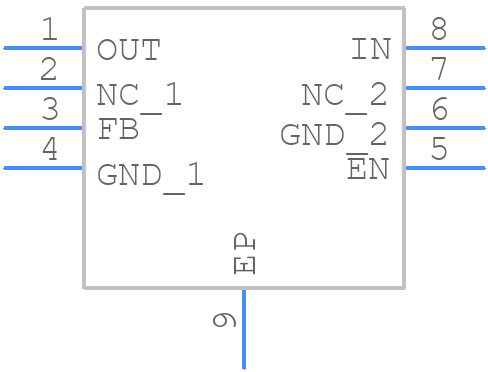

Use the download button to access the TLV76601QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV76,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
