Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for low-dropout regulator (LDO) design, such as minimizing trace lengths, using a solid ground plane, and placing bypass capacitors close to the device.
To ensure stability, it's essential to follow the recommended output capacitor selection and placement guidelines in the datasheet. Additionally, the output capacitor's equivalent series resistance (ESR) should be within the recommended range, and the device should be operated within its specified input voltage range.
Although the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can cause permanent damage or affect the device's performance.
While the TLV76612QWDRBRQ1 is a low-dropout regulator, it's not designed to be used as a voltage reference. The output voltage tolerance is ±2% over the operating temperature range, which may not be sufficient for applications requiring a high-precision voltage reference. For voltage reference applications, consider using a dedicated voltage reference device.
To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the device's specified thermal limits to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV76612QWDRBRQ1 Overview

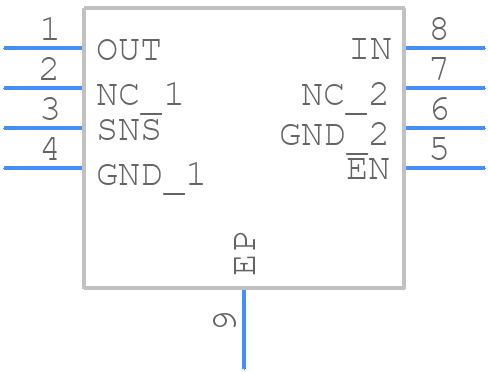

Use the download button to access the TLV76612QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV76,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
