Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-dropout regulator (LDO) layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, it's essential to follow the recommended output capacitor selection guidelines in the datasheet, including the minimum capacitance value and equivalent series resistance (ESR). Additionally, the input capacitor should be selected based on the input voltage ripple and noise requirements.
Although the datasheet specifies a maximum input voltage of 12V, it's recommended to derate the input voltage to 10V or less to ensure reliable operation and minimize the risk of damage or malfunction.
The TLV76618QWDRBRQ1 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked and follow the recommended thermal design guidelines.
To troubleshoot output voltage issues, start by verifying the input voltage and current, then check the output capacitor selection and layout. Ensure that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or noise.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV76618QWDRBRQ1 Overview

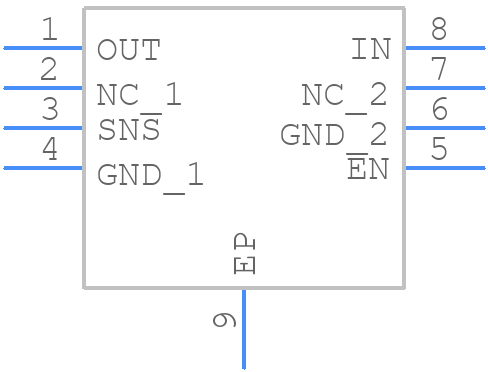

Use the download button to access the TLV76618QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV76,
or try a keyword search, such as Linear Regulator ICs
