A good PCB layout for the TLV76701QWDRBRQ1 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
The output capacitor for the TLV76701QWDRBRQ1 should be chosen based on the desired output voltage ripple and transient response. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
The TLV76701QWDRBRQ1 can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure optimal performance and reliability. Exceeding the maximum input voltage can cause damage to the device.
To ensure stability and prevent oscillation, it's essential to follow the recommended PCB layout, use a suitable output capacitor, and ensure that the input voltage is within the recommended range. Additionally, it's recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
The thermal derating curve for the TLV76701QWDRBRQ1 is not explicitly stated in the datasheet, but it's recommended to follow the general guidelines for thermal derating in the Texas Instruments application notes. As a general rule, the device's power dissipation should be derated by 1% for every 1°C increase in temperature above 25°C.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV76701QWDRBRQ1 Overview

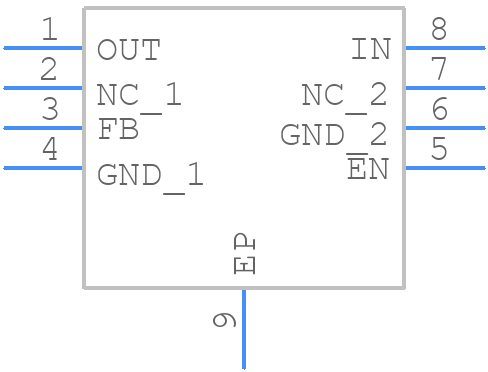

Use the download button to access the TLV76701QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV76,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
