A good PCB layout for the TLV76733QWDRBRQ1 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The output capacitor should be chosen based on the desired output voltage ripple, output current, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
The TLV76733QWDRBRQ1 can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize the risk of damage.
To ensure stability, it's essential to follow the recommended PCB layout, use a suitable output capacitor, and add a compensation capacitor (typically 10pF to 100pF) between the COMP and GND pins. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
The TLV76733QWDRBRQ1 can deliver up to 3A of output current, but it's recommended to keep the output current below 2.5A to ensure reliable operation and minimize the risk of overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV76733QWDRBRQ1 Overview

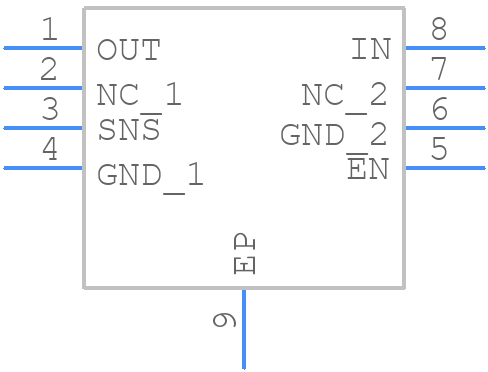

Use the download button to access the TLV76733QWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV76,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
Suggested Parts
If you searched for TLV76733QWDRBRQ1, you might also be interested in these parts:
