The TLV9002IDSGT is a high-frequency device, so it's essential to follow good PCB layout practices to minimize noise and ensure proper operation. Place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate.
To ensure stability, make sure to follow the recommended compensation network, and use a capacitor with a low equivalent series resistance (ESR) and a high-quality ceramic capacitor for the output capacitor. Also, avoid using long input traces and keep the input impedance low.
The TLV9002IDSGT has an absolute maximum input voltage rating of 6.5V. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the input voltage is within the recommended operating range of 2.2V to 5.5V.
The TLV9002IDSGT is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating temperature range and consider the thermal design and heat dissipation in your application.
The output voltage ripple of the TLV9002IDSGT can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ΔVout is the output voltage ripple, Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV9002IDSGT Overview

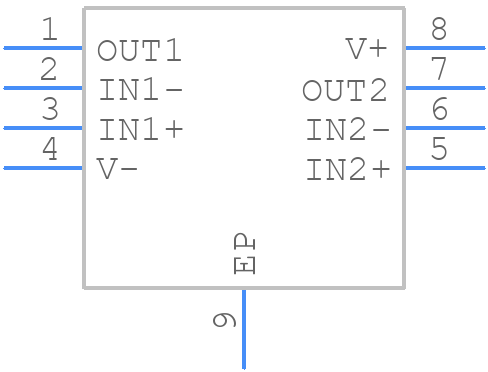

Use the download button to access the TLV9002IDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV90,
or try a keyword search, such as Operational Amplifiers
