TLV9004SIRTER - Texas Instruments

Description: 4-Channel, 1MHz, RRIO, 1.8V to 5.5V Operational Amplifier for Cost-Optimized Systems

Download TLV9004SIRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

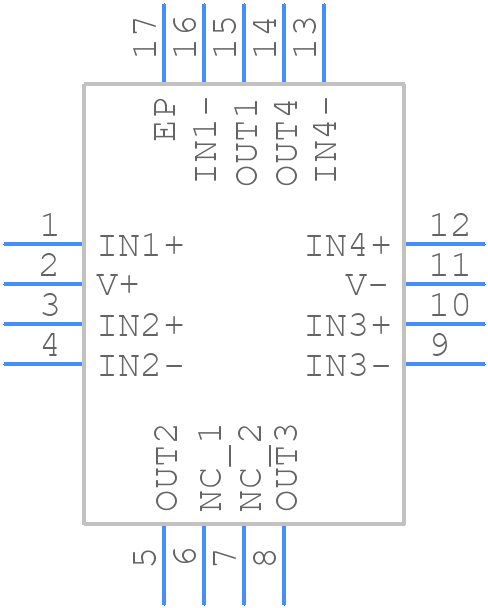

Symbol
TLV9004SIRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV9004SIRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TLV9004SIRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TLV9004SIRTER Details

  • Manufacturer Part Number:

    TLV9004SIRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    63 dB

  • Common-mode Reject Ratio-Nom:

    77 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1600 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    2 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    158489

  • Wideband:

    NO

  • Width:

    3 mm

TLV9004SIRTER Frequently Asked Questions (FAQs)

  • It is recommended to place the TLV9004SIRTER close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise. Additionally, it is recommended to use a 10uF capacitor between the VIN pin and GND to filter out high-frequency noise.
  • To ensure stability, it is recommended to use a minimum of 10uF capacitor at the output, and to ensure that the output capacitor is placed close to the VOUT pin. Additionally, the input capacitor should be at least 1uF and placed close to the VIN pin. It is also recommended to use a low-ESR capacitor to minimize oscillation.
  • The TLV9004SIRTER can handle a maximum input voltage of 18V. However, it is recommended to operate the device within the recommended input voltage range of 2.7V to 15V for optimal performance and reliability.
  • The TLV9004SIRTER is rated for operation up to 125°C. However, it is recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. It is also recommended to use a heat sink or thermal pad to dissipate heat and ensure reliable operation.
  • The output voltage of the TLV9004SIRTER can be calculated using the following formula: VOUT = 1.2V x (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network. The output voltage can be adjusted by changing the ratio of R1 and R2.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV9004SIRTER Overview

Use the download button to access the TLV9004SIRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV90, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
