TLV9024RTER - Texas Instruments

Description: High-performance quad low-voltage open-drain comparator

Download TLV9024RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

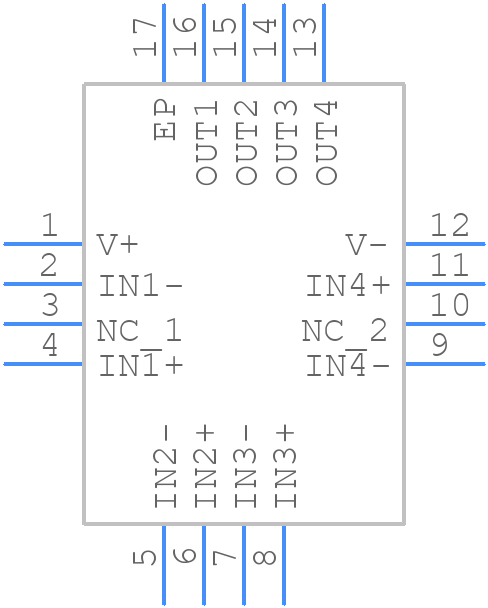

Symbol
TLV9024RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV9024RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TLV9024RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TLV9024RTER Details

  • Manufacturer Part Number:

    TLV9024RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-12-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    150 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLV9024RTER Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with short traces and minimal vias to minimize noise and parasitic inductance. Place the device close to the power source and use a solid ground plane to reduce noise. Refer to the TI application note 'LDO Layout and Placement Guidelines' for more information.
  • To ensure stability, use a minimum output capacitance of 10uF with an ESR of 0.1Ω to 10Ω. Additionally, place the output capacitor close to the device and use a low-ESR capacitor to minimize oscillations. Refer to the datasheet for more information on output capacitance and ESR requirements.
  • The TLV9024RTER can handle a maximum input voltage of 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 12V for optimal performance and reliability.
  • The TLV9024RTER is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's output current and voltage at high temperatures.
  • The power dissipation of the TLV9024RTER can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Refer to the datasheet for more information on power dissipation and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV9024RTER Overview

Use the download button to access the TLV9024RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV90, or try a keyword search, such as Comparators
