TLV9034RTER - Texas Instruments

Description: High-performance, quad, low-voltage, push-pull comparator

Download TLV9034RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

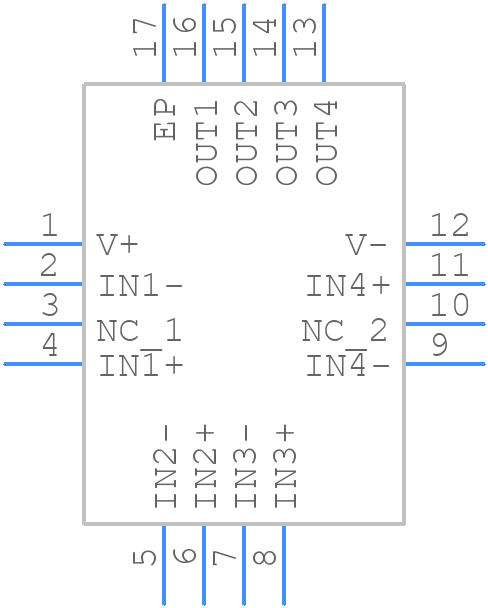

TLV9034RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV9034RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TLV9034RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TLV9034RTER Details

  • Manufacturer Part Number:

    TLV9034RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-12-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Bias Current-Max (IIB) @25C:

    0.000005 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    115 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLV9034RTER Frequently Asked Questions (FAQs)

  • The TLV9034RTER can drive up to 10nF of capacitive load. However, it's recommended to limit the capacitive load to 4.7nF or less to ensure stability and optimal performance.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a low-ESR output capacitor (e.g., X5R or X7R type), and keep the input and output capacitors close to the device. Additionally, avoid using long traces and minimize the distance between the device and the capacitors.
  • The TLV9034RTER can operate with an input voltage as low as 2.7V. However, the device's performance and output voltage accuracy may be affected at lower input voltages. It's recommended to operate the device with an input voltage of 3V or higher for optimal performance.
  • The TLV9034RTER is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • The output voltage of the TLV9034RTER can be calculated using the following formula: VOUT = (R1 / R2) * (VIN - VREF), where R1 and R2 are the resistors used in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.2V).
