TLV9054IRUCR - Texas Instruments

Description: Quad 5-MHz, 15-V/µs high slew-rate, RRIO op amp

Download TLV9054IRUCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

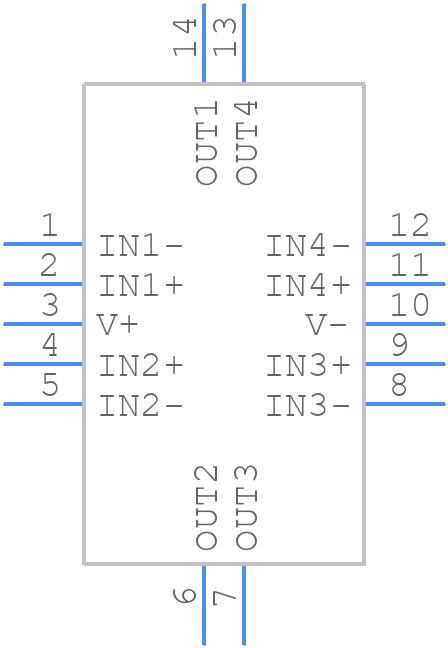

TLV9054IRUCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV9054IRUCR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUC (S-PX2QFN-N14)
click to zoom
3D Models
TLV9054IRUCR - Texas Instruments - 3D model - Quad Flat No-Lead - RUC (S-PX2QFN-N14)
click to zoom

TLV9054IRUCR Details

  • Manufacturer Part Number:

    TLV9054IRUCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-03-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000525 µA

  • Bias Current-Max (IIB) @25C:

    0.000018 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    96 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1600 µV

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.4 mm

  • Slew Rate-Nom:

    15 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    158489.3192

  • Wideband:

    NO

  • Width:

    2 mm

TLV9054IRUCR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the TLV9054IRUCR placed close to the power supply bypass capacitors. The input and output pins should be routed away from each other to minimize noise coupling. A 4-layer PCB with a solid ground plane is recommended to reduce noise and improve thermal performance.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor has an ESR (Equivalent Series Resistance) of less than 1 ohm. Additionally, place a 1uF ceramic capacitor in parallel with the output capacitor to improve high-frequency stability. Avoid using long output traces and keep the output pin away from the input pin.
  • The TLV9054IRUCR has an absolute maximum input voltage rating of 18V. However, it is recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure reliable operation and prevent damage to the device.
  • The TLV9054IRUCR has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to use thermal management techniques such as heat sinks or thermal pads to keep the device temperature below 100°C.
  • The power dissipation of the TLV9054IRUCR can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The maximum power dissipation of the device is 1.4W.
