A good PCB layout for the TLV9062IDSGT involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output capacitor (COUT) to minimize ringing and ensure stability.
The choice of output capacitor (COUT) depends on the specific application requirements. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that exceeds the output voltage. For example, a 2.2uF, 6.3V capacitor would be a good choice for a 5V output.
The TLV9062IDSGT has an absolute maximum input voltage rating of 18V. However, the recommended maximum input voltage is 15V to ensure reliable operation and to prevent damage to the device.
The TLV9062IDSGT is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a low-ESR output capacitor, and ensure that the input and output capacitors are properly sized. Additionally, the device's output voltage should be set to a value that is within the recommended range, and the input voltage should be well-regulated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV9062IDSGT Overview

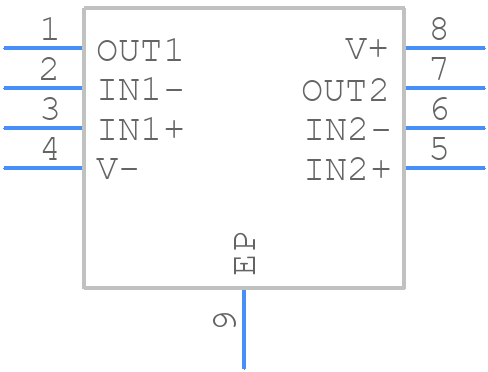

Use the download button to access the TLV9062IDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV90,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
