Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, follow the recommended compensation network values and layout guidelines. Additionally, ensure that the output capacitor is properly sized and placed close to the output pin. You can also consider adding a small series resistor (e.g., 1-10 ohms) between the output and the capacitor to improve stability.
Although the datasheet specifies a maximum input voltage of 42V, it's recommended to limit the input voltage to 36V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even device failure.
The output capacitor value and type depend on the specific application requirements, such as output voltage, current, and ripple. As a general guideline, use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10uF and 47uF. For high-current applications, consider using a larger capacitor value or multiple capacitors in parallel.
The thermal derating curve is not explicitly provided in the datasheet, but it can be estimated based on the device's thermal characteristics. As a general guideline, the device's output current should be derated by 1.5% per degree Celsius above 25°C. For example, if the device is operating at 50°C, the output current should be reduced by 37.5% (1.5% x 25°C) to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLVM13620RDHR Overview

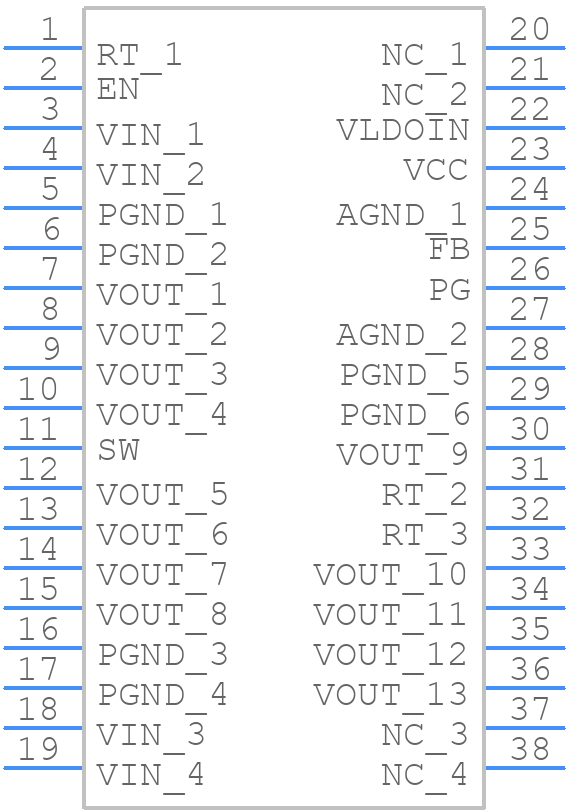

Use the download button to access the TLVM13620RDHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLVM1,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
