Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, follow the recommended component values and PCB layout. Additionally, consider adding a small capacitor (e.g., 10nF) between the VIN pin and the GND pin to filter out high-frequency noise. Also, make sure the output capacitor is properly sized and placed close to the output pin.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
The TLVM13640RDLR is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation. Use a heat sink or a thermal pad to dissipate heat, and consider derating the output current at high temperatures.
The output capacitor value depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to use a capacitor with a value between 10uF and 47uF, with a voltage rating of at least 1.5 times the output voltage. Consult the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLVM13640RDLR Overview

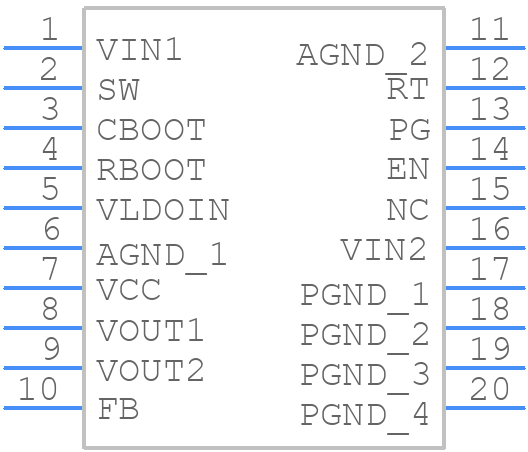

Use the download button to access the TLVM13640RDLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLVM1,
or try a keyword search, such as Switching Regulator or Controllers
