The recommended PCB layout involves keeping the high-frequency signals away from the power planes, using a solid ground plane, and placing the decoupling capacitors close to the device. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 125°C.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature ranges. Additionally, consider using thermal protection and overcurrent protection circuits to prevent damage from overheating or overcurrent conditions.
For optimal signal integrity, it's recommended to use a 50-ohm termination scheme for the input and output signals. This can be achieved using a series resistor and a shunt capacitor to ground. The exact values will depend on the specific application and signal frequencies involved.
To minimize EMI, use a shielded enclosure, keep the device away from other noise-sensitive components, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Ensure compliance with regulatory standards such as FCC Part 15 or EN 301 489 by following the recommended layout and shielding guidelines.
The recommended power sequencing involves applying the power supplies in a specific order, typically starting with the analog supply and then the digital supply. Ensure that the power supplies are stable and within the recommended voltage ranges before applying the input signals.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TM1062TX3DUA Overview

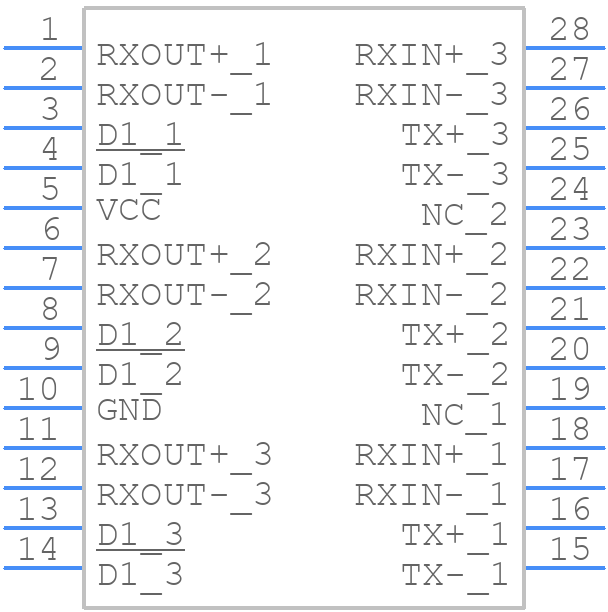

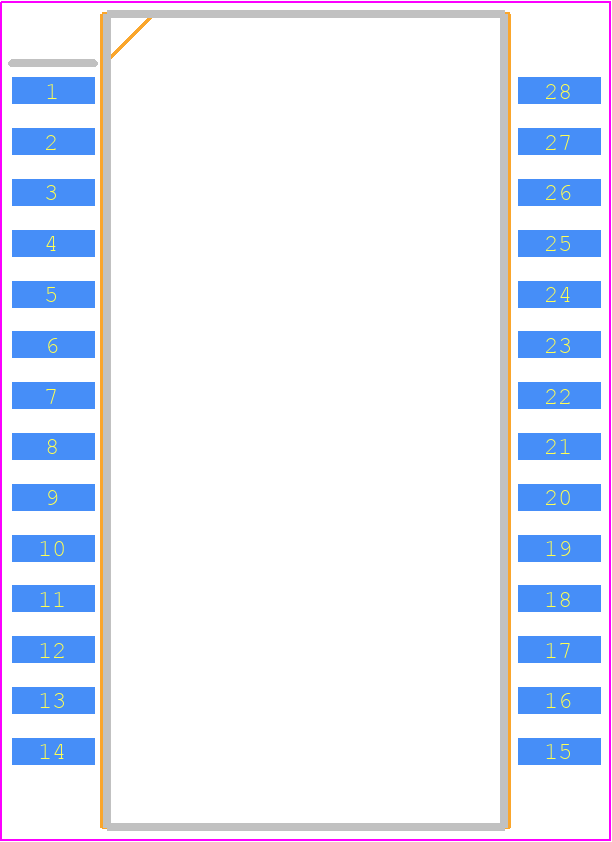

Use the download button to access the TM1062TX3DUA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TM106,
or try a keyword search, such as Other Interface ICs
