The recommended operating voltage range for the TM1630CP is 3.3V to 5.5V, although it can tolerate a voltage range of 2.7V to 6.0V.
To ensure reliable communication, make sure to use a pull-up resistor on the CLK and DIO lines, and use a clock frequency of 100 kHz to 400 kHz. Also, ensure that the microcontroller and TM1630CP are properly grounded.
The maximum current consumption of the TM1630CP is approximately 20mA, although this can vary depending on the display mode and brightness.
Yes, the TM1630CP is compatible with 3.3V microcontrollers. However, you may need to use a level shifter or voltage divider to ensure that the voltage levels are compatible.
The brightness of the display can be adjusted by sending a command to the TM1630CP to set the duty cycle of the display. The duty cycle can be set to one of 16 levels, ranging from 0 (minimum brightness) to 15 (maximum brightness).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TM1630CP Overview

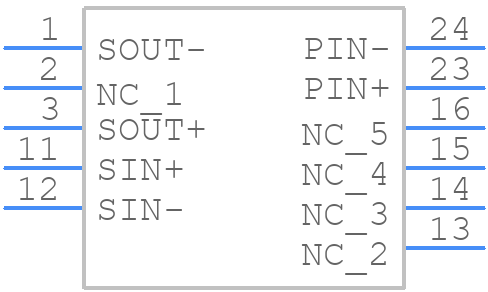

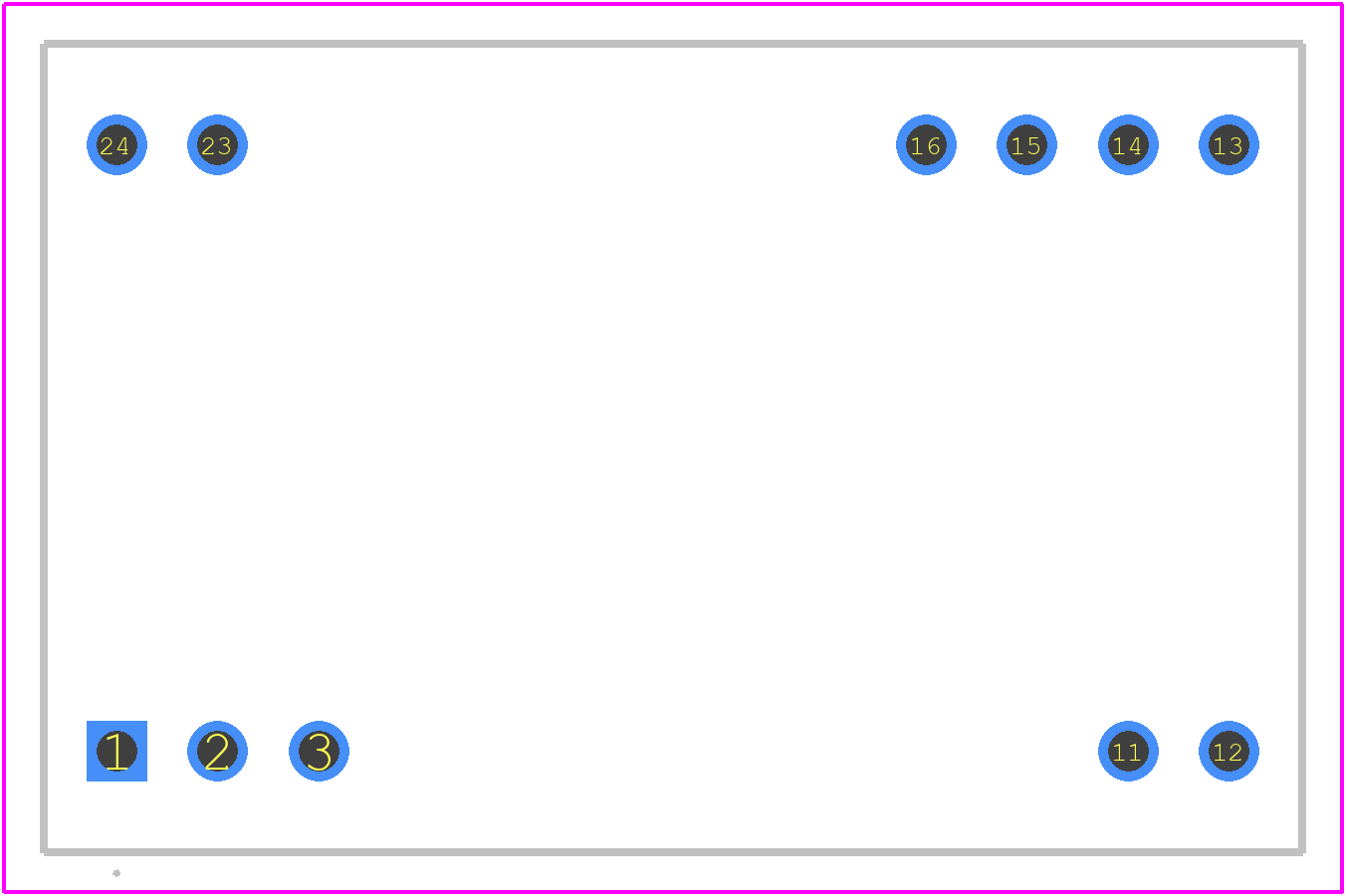

Use the download button to access the TM1630CP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TM163,
or try a keyword search, such as Other Signal Circuits
