TM5RJ3-66(50) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

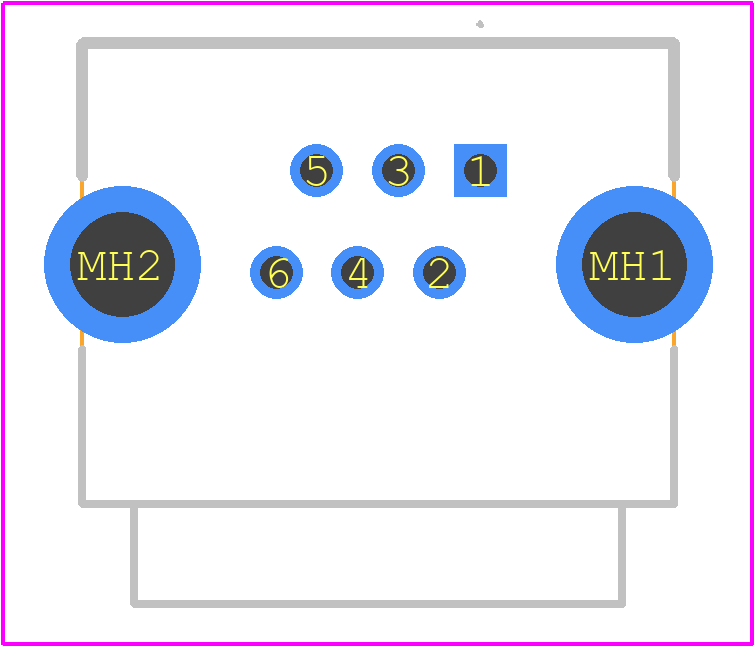

PCB Footprints

TM5RJ3-66(50) - Hirose PCB footprint - Other - Other - TM5RJ3-66(50)-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TM5RJ3-66(50)
Part Number TM5RJ3-66(50)
Manufacturer Hirose
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - TM5RJ3-66(50)-5
Released Date Nov 23, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TM5RJ3-66(50) Details

Manufacturer Part Number:
TM5RJ3-66(50)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
26 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Additional Feature:
ROHS COMPLIANT
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.551 inch
Body Depth:
0.551 inch
Body Length:
0.583 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Style:
TELCOM, MODULAR
Durability:
200 Cycles
Insulator Color:
GRAY
Mounting Option 1:
GUIDE SLOT
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-25 °C
PCB Contact Pattern:
STAGGERED
Rated Current (Signal):
0.5 A
Reference Standard:
UL
Terminal Length:
0.118 inch
Terminal Pitch:
2.032 mm
Termination Type:
SOLDER
Total Number of Contacts:
6

TM5RJ3-66(50) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the TM5RJ3-66(50) connector is designed to withstand vibrations and shocks. It meets the IEC 61373 Category 2 standard for vibration and shock resistance, making it suitable for use in high-vibration environments.
The TM5RJ3-66(50) connector is designed to operate in temperatures ranging from -40°C to 105°C. However, it's essential to note that the temperature range may affect the connector's performance and lifespan.
The TM5RJ3-66(50) connector has a sealed design that provides IP67 protection against dust and water ingress. However, it's essential to follow proper installation and maintenance procedures to ensure the connector's reliability in harsh environments.
The TM5RJ3-66(50) connector is designed for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on factors such as usage, environment, and maintenance.

Trust Checks

Community Provided

System Verified

Community Approved

TM5RJ3-66(50) Overview

Use the download button to access the TM5RJ3-66(50) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TM5RJ, or try a keyword search, such as Telecom and Datacom Connectors
