TMC2100-LA-T footprint, schematic symbol and 3D model by Analog Devices

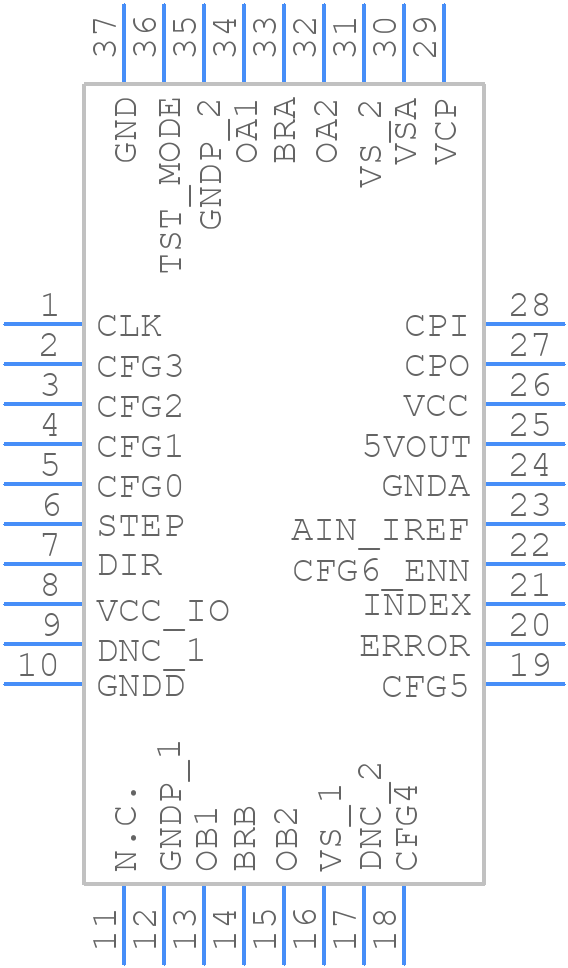

Symbol

click to zoom

PCB Footprints

TMC2100-LA-T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN36 5x6_2026

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMC2100-LA-T
Part Number TMC2100-LA-T
Manufacturer Analog Devices
Pin Count 37
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN36 5x6_2026
Released Date May 16, 2018
Last Modified Date Aug 6, 2026 4:39 AM UTC
Pinout / Pin List Click Here (Member Only)

TMC2100-LA-T Details

Manufacturer Part Number:
TMC2100-LA-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
JESD-30 Code:
R-PQCC-N36
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
36
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC36,.2X.24,20
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.9 mm
Supply Current-Max (Isup):
22 mA
Supply Voltage-Max (Vsup):
46 V
Supply Voltage-Min (Vsup):
4.7 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm

TMC2100-LA-T Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a ferrite bead or a 10uF capacitor to filter the power supply.
Use the TMC2100-LA-T evaluation board and the accompanying software to configure the device. The software provides a graphical user interface to set parameters such as motor type, current limits, and acceleration rates.
The TMC2100-LA-T is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
Use the device's built-in diagnostic features, such as the fault output pin and the SPI interface, to monitor the device's status and identify potential issues. Consult the datasheet and application notes for troubleshooting guidelines and common error codes.
While the TMC2100-LA-T is designed for specific motor types and voltage ranges, it may be possible to use it with other motors or voltage ranges with proper configuration and testing. However, this may require custom firmware development and thorough testing to ensure reliable operation.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TMC2100-LA-T Overview

Use the download button to access the TMC2100-LA-T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TMC21, or try a keyword search, such as Motion Control Electronics
